Construction Site Gates

by SteelWork Southern

Designed and Manufactured in Great Britain

Configure Your Gates

Pre-made Sizes:

Select your size below

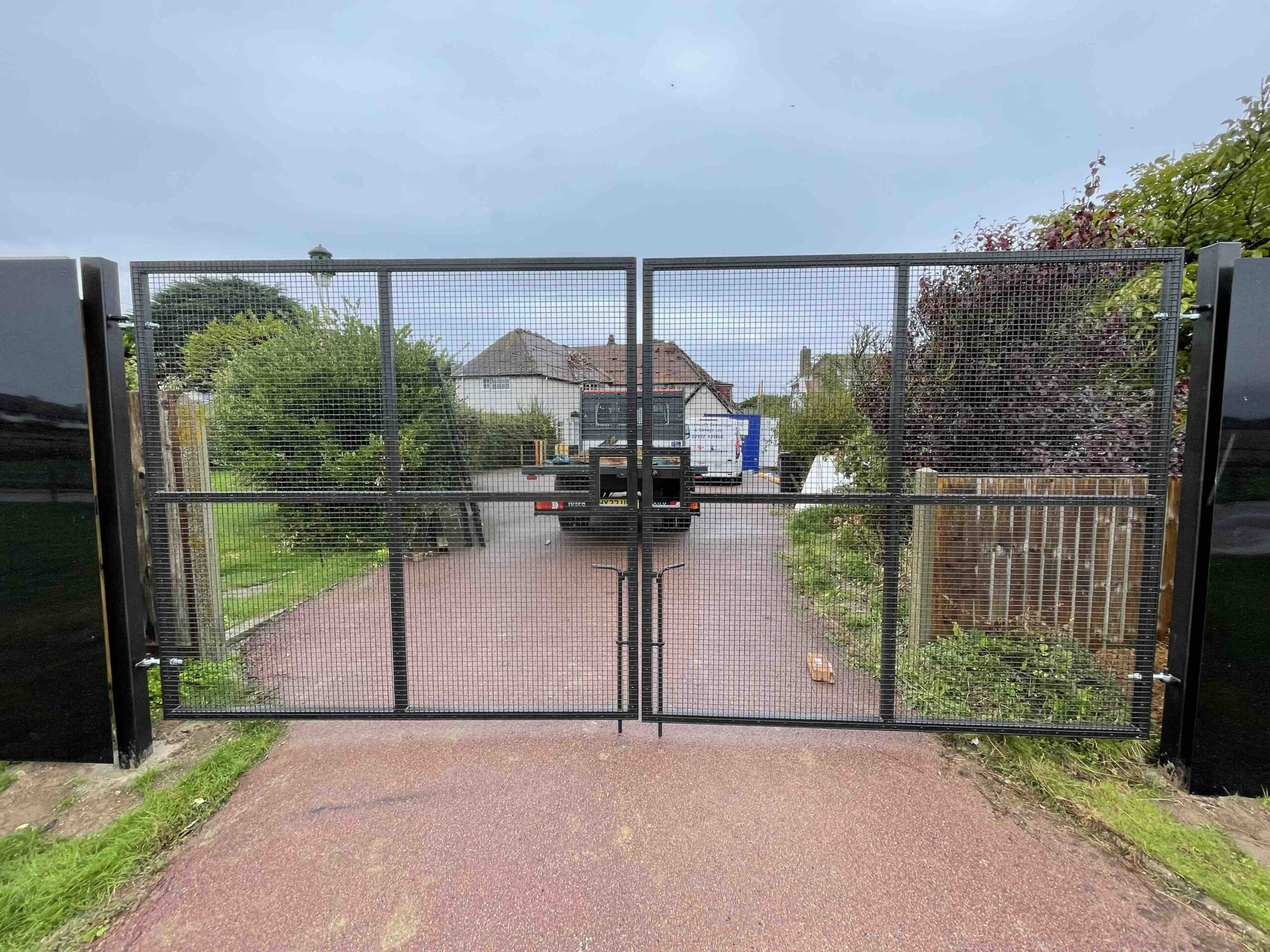

5m site gates 6m site gates

Bespoke Sizes:

Our construction site gates can be made to any size, although our standard sizes of 5 Metre and 6 metres wide are available off the shelf, for immediate despatch.

Gates are available either ply or mesh clad. All gates incorporate inverted hinges, for added security, drop bolts and male/female slider type locking system. Posts are constructed using 100mm x 100mm x 5mm box section

Bespoke gate sizes can be made, including bi fold and integral pedestrian gate.

Specification

Gate Frame

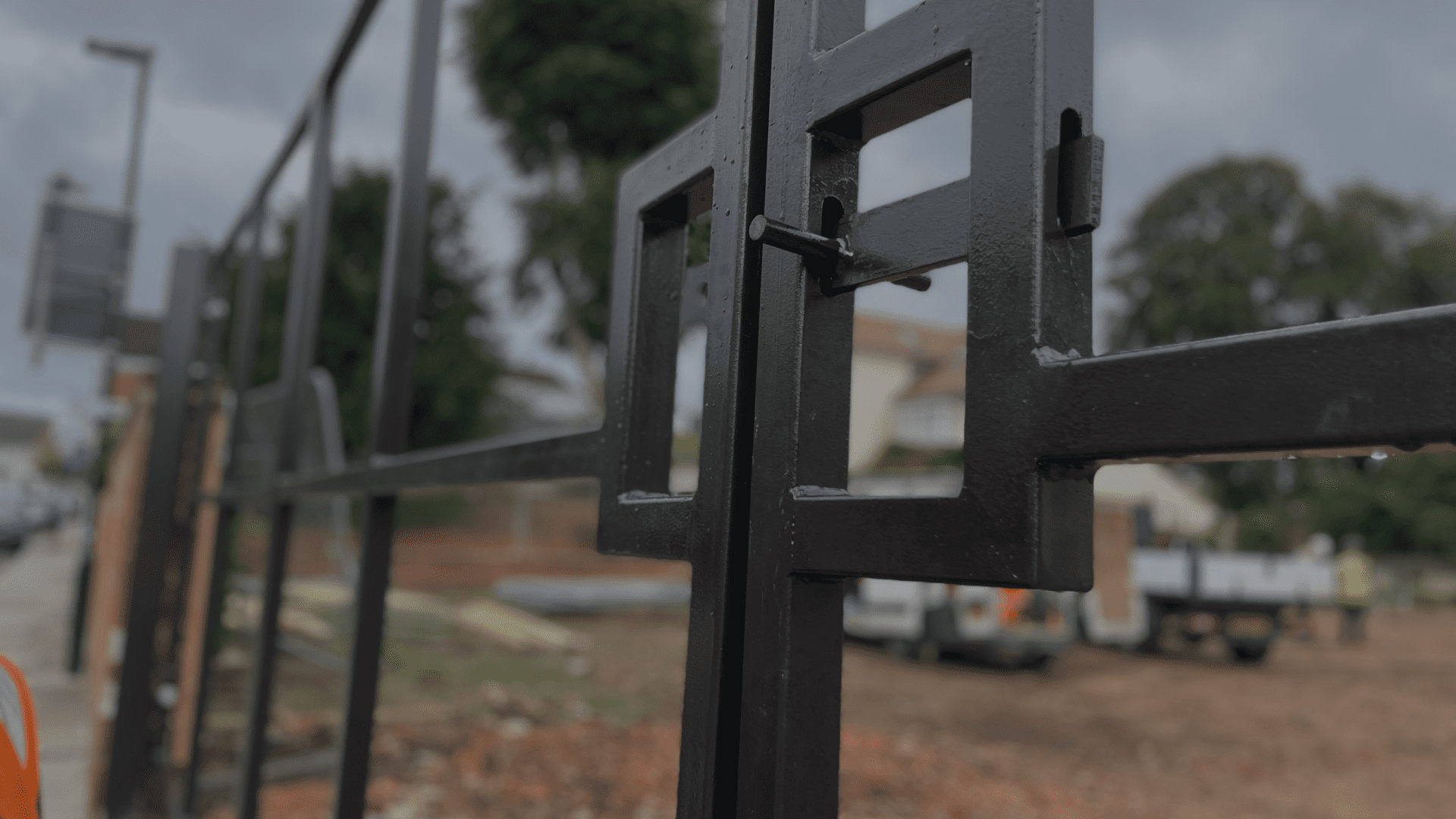

50mm x 50mm x 3mm box section, with mitred welded corners. Male/female locking system incorporated within frame.

16mm drop bolt fitted to each gate.

Gate Coverings

Two options.

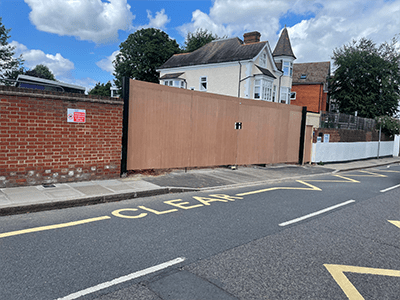

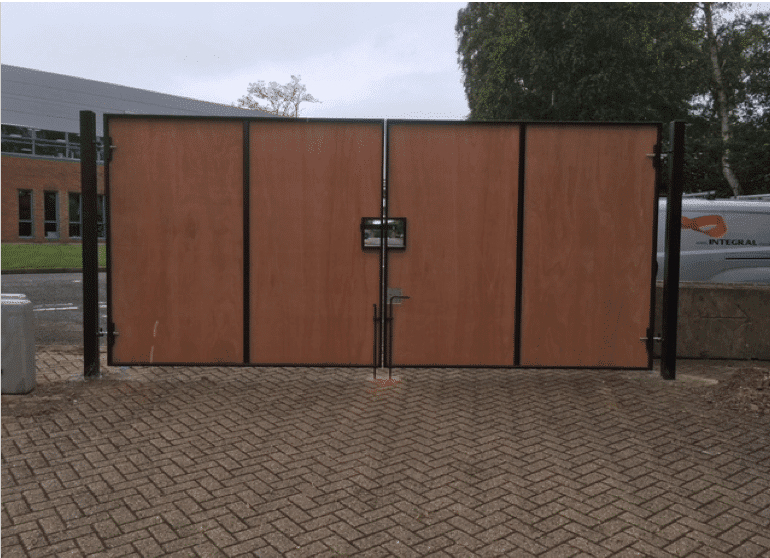

12mm exterior grade ply screws to external face of frames.

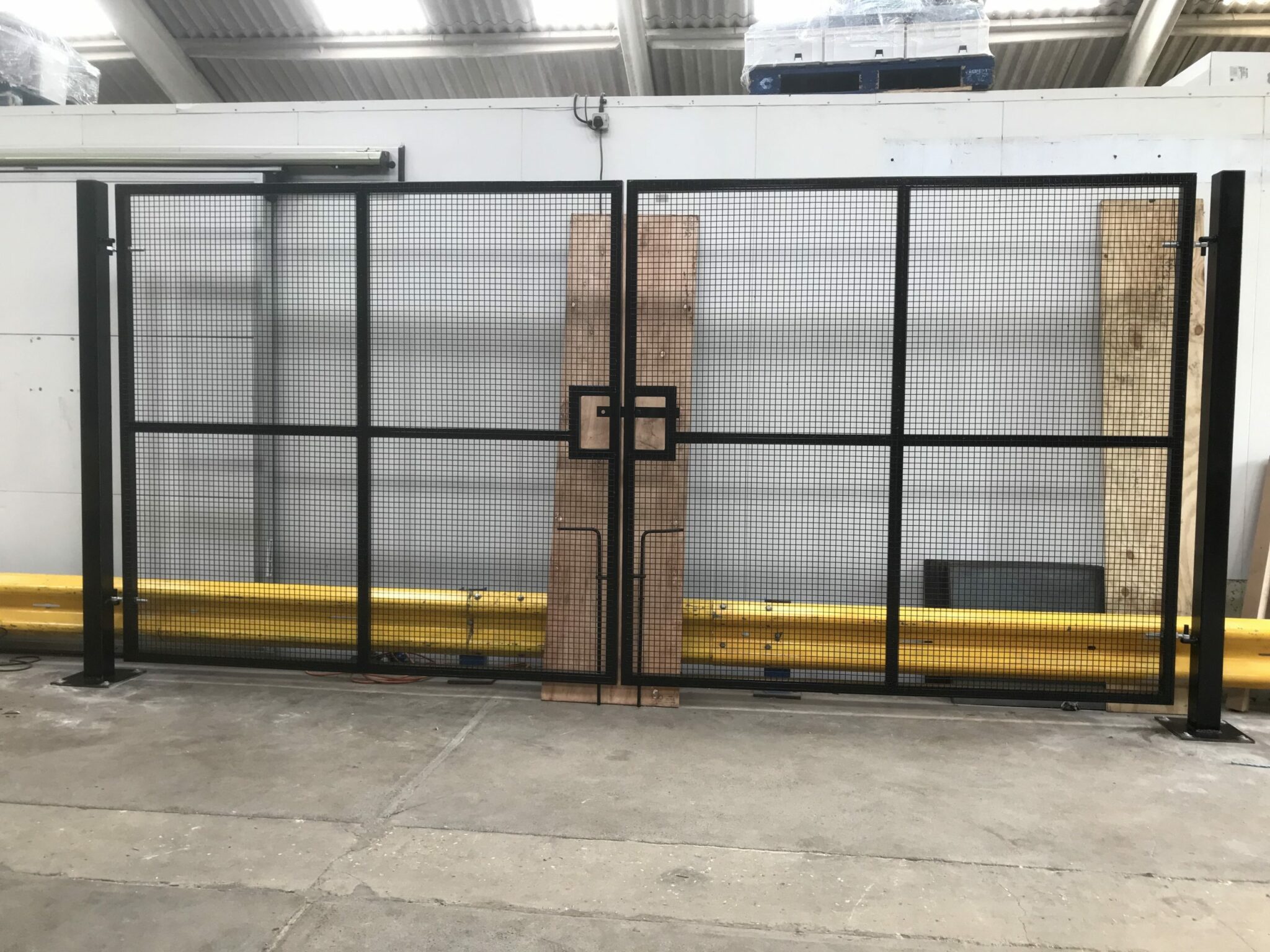

Or, 25mm x 3mm square mesh welded to external frame.

Posts

100mm x100mm x 5mm square hollow section posts, with welded inverted hinges for added security. Posts length allows for 750mm enbedement.

Gates and posts finished in black smooth Hammerite.

Timber cladding left self colour for painting to match site requirements.

With units in Chichester and Farnborough we cover London, Surrey, Sussex, Hampshire and Dorset.

If you have any questions or queries then please do not hesitate to contact us on 01243 943 029 or by emailing [email protected].
