£682.50 exc. VAT

Set of Gates (5 Metre)

Metal FabricationSecurity & HoardingSite Gates


Our construction site gates can be made to any size, but our standard sizes of 5 and 6 meters wide are available off the shelf for immediate dispatch. This means that you can get the gates you need quickly and easily without having to wait for bespoke gates to be made.


8 in stock (can be backordered)

  • Configure Your Gates

    Choose the options below to fit your site's requirements.
    *Frame Colour

    Choose the Frame Colour, if you choose mesh cladding it will also be painted in the chosen colour.


    Now click or tap the image below to choose the type of cladding that you require.

- +


Switch to 6 Metre Gates

If you need construction site gates in a hurry, our standard sizes are the perfect solution.

But if you need some bespoke gates, we can make them to your exact specifications and deliver them quickly and efficiently.

Switch to Bespoke Gates

If at any point you wish to discuss any of our products, then please do not hesitate to call our sales team at 01243 943100.

Construction site gates can be customised to various sizes, including our standard measurements of 5 metres and 6 metres wide, which are available off the shelf for immediate despatch.

Our gates are offered as frame-only or with the option of plywood or mesh cladding. They all come equipped with inverted hinges for increased security, drop bolts, and a male/female slider lock. The posts are made of sturdy 100mm x 100mm x 5mm box sections.

We also offer bespoke gate sizes, including bi-fold and integral pedestrian gates, to meet your specific needs.


Gate Frame

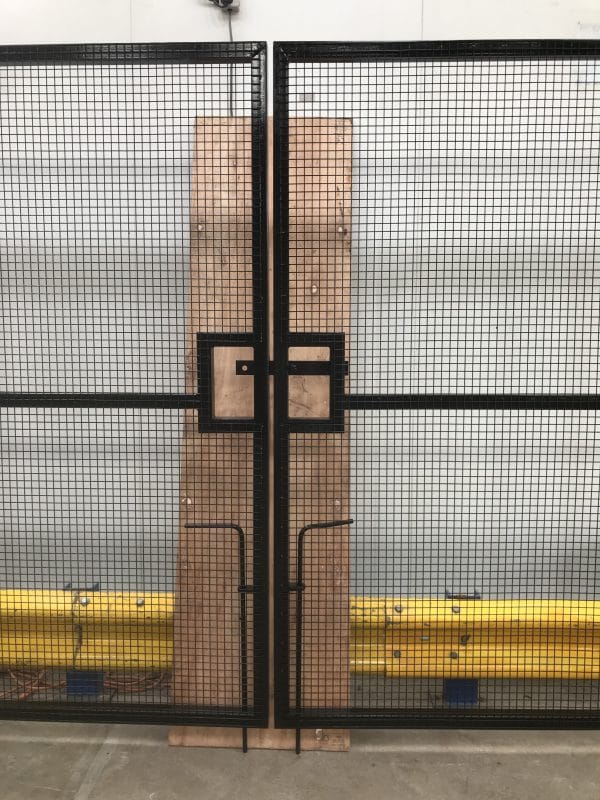

50mm x 50mm x 3mm box section, with mitred welded corners. Male/female locking system incorporated within the frame. 16mm drop bolt fitted to each gate.

Gate Coverings
Two options.
Timber Cladding
12mm exterior grade ply screws to the external face of frames.
Mesh Cladding
25mm x 3mm square mesh welded to the external frame.

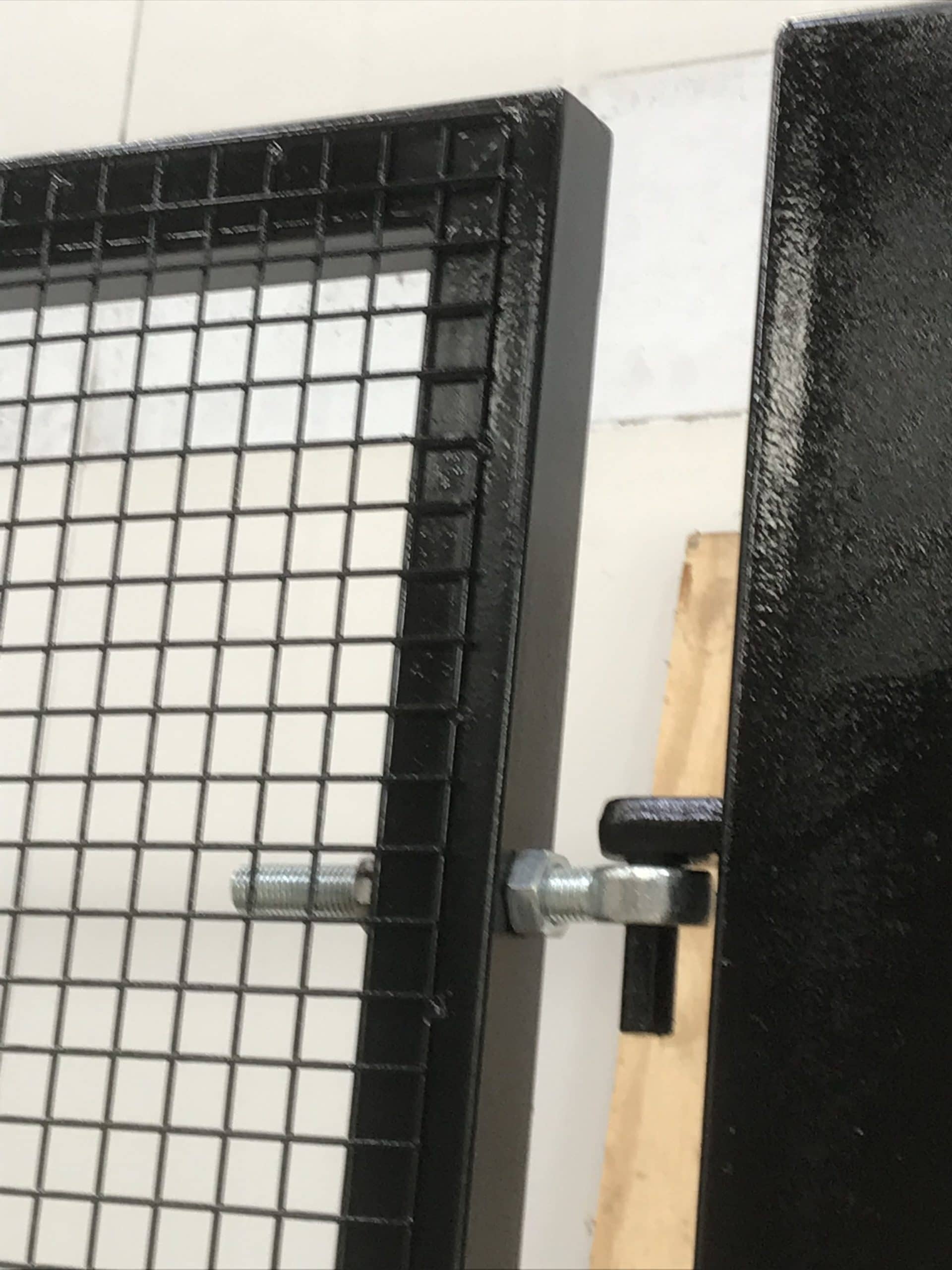

100mm x100mm x 5mm square hollow section posts, with welded inverted hinges for added security. Posts length allows for 750mm embedment.
Gates and posts are finished in black smooth or Enviornmental Green Hammerite.
Timber cladding left self-colour for painting to match the site's requirements.
With units in Chichester and Farnborough, we cover the London, Surrey, Sussex, Hampshire and Dorset areas.
