Description

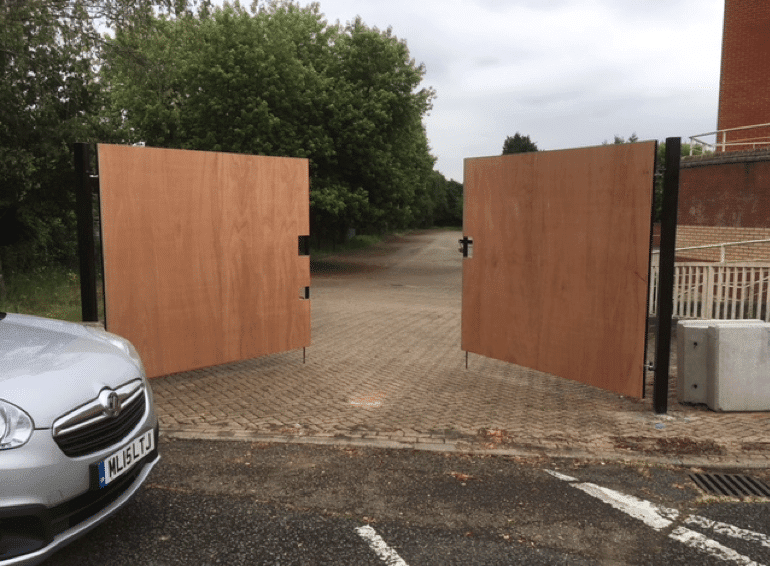

Our construction site gates can be made to any size, although our standard sizes of 5 metre and 6 metres wide are available off the shelf, for immediate despatch.
Gates are available either ply or mesh clad. All gates incorporate inverted hinges, for added security, drop bolts and male/female slider type locking system. Posts are constructed using 100mm x 100mm x 5mm box section
Bespoke gate sizes can be made, including bi-fold and integral pedestrian gate.
Specification
Gate Frame
50mm x 50mm x 3mm box section, with mitred welded corners. Male/female locking system incorporated within frame.
16mm drop bolt fitted to each gate.
Gate Coverings
Two options.
12mm exterior grade ply screws to external face of frames.
Or, 25mm x 3mm square mesh welded to external frame.
Posts
100mm x100mm x 5mm square hollow section posts, with welded inverted hinges for added security.
Posts length allows for 750mm embedment.
Gates and posts finished in black smooth Hammerite.
Timber cladding left self-colour for painting to match the site’s requirements.
With units in Chichester and Farnborough, we cover London, Surrey, Sussex, Hampshire and Dorset.
